   Products  Installation material  Switches, Push and signal buttons  Brass  HNA-Switch, DIN89270  Change-over switch, 1-pole

1133/D/We/10A-2xZ14

HNA Switch 10A, brass, IP56

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo
WISKA-Order no. 10010543
Type 1133/D/We/10A-2xZ14
Voltage max. (V) 250 V
Current 10 A
Protection class IP56
Material Brass
Using for cable gland Using for cable gland
Type of cable gland M 24 x 1,5
Ø cable diameter min 12 mm
Ø cable diameter max 14,5 mm
Type of cable armoured
Mounting Surface mounting
Temp. range min -25 °C
Temp. range max 45 °C
Type of switch Change-over, 1-pole
Norm DIN 89270
Weight 0,97 kg
Variations on request

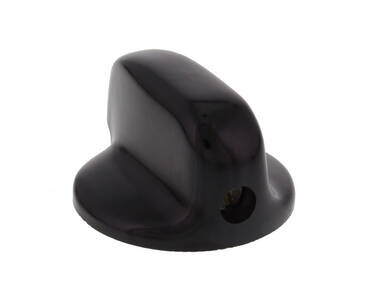

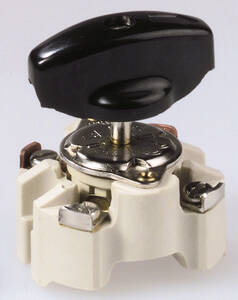

Spare parts
