   Products  Installation material  Ex-Switches, Zone 1, IIC, T6, max. 16A, 2-pole

Ex-14105/1x24-Z14

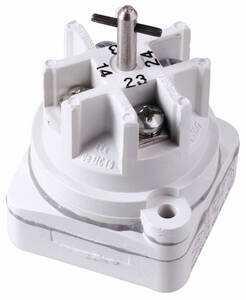

Ex On-off switch 2-pole 16A, brass, IP66

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo Logo Logo
WISKA-Order no. 10030504
Type Ex-14105/1x24-Z14
Material Brass
Voltage 690 V
Current 16 A
Protection class IP66
Type of switch On-Off, 2-pole
Temp. range min -40 °C
Temp. range max 55 °C
Using for cable gland Using for cable gland
Type of cable gland M 24 x 1,5
Material cable gland Brass
Type of cable armoured
Ø cable diameter min 12 mm
Ø cable diameter max 14,5 mm
Explosion Groups IIC, IIIC
Approval IECEx TUR 15.0017X, TÜV 14 ATEX 7568 X
Marking II 2G Ex de IIC T6...T5 Gb, II 2D Ex tb IIIC T80° Db
Zone 1, 21
Approval RMRS, DNV-GL
Mounting Surface mounting
Colour Black
Weight 1,91 kg
Variations on request
M_00000190 85363010
