   Products  Installation material  Junction boxes  Plastic  COMBI  COMBI 308

COMBI 308 BK

Junction box 85x85x51mm, polypropylene, RAL 9005

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo Logo Logo Logo
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 400 V
Rated cross section 4 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 85 x 85 x 51mm
Type of cable gland M 20 x 1,5
Using for cable gland Using for cable gland
Product Color RAL 9005
WISKA-Order no. 10060581
Type COMBI 308 BK
Packing unit 5
ETIM-Classification EC002600
EAN number 4007685605816
Tariff number 39269097
Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 8 M20 threaded membrane entries
- 4 captive cover screws
- including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

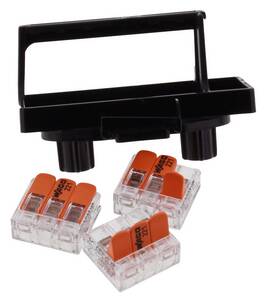

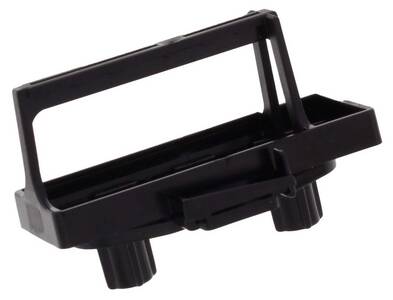

Recommended accessories
